4WD Winch

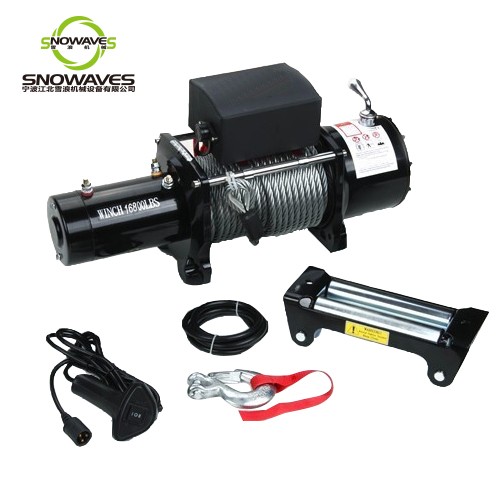

16800lbs Electric Winch
16800lbs Electric Winch
Products detail:

16800LB, WINCH SPECIFICATIONS

Rated Line Pull

16800LBS (7620kgs) single line

Motor

4.4kw/6.0hp, series wound

Control

Remote switch, 11.5ft(3.5m)lead

Gear train

3 Stage Planetary

Gear train ratio

358:1

Clutch

Sliding Ring Gear

Braking Action

Automatic In-The-Drum

Drum Size

Φ2.5"(88)mm×(8.8")221.5mm

Cable

Φ10.5mmX26m

Overall Dimensions

23.9"x4.5"x9"(606mm×190mm×254mm)

Mounting Bolt Pattern

253mm×114mm   Φ12

Weight

N.W.54kg    G.W.56Kg

Packing Size

655×235×410mm

PULL, SPEED, AMPERES, VOLTS

Line pull lbs(kgs)

Line speed ft/min(m/min)

Current A

0

 25.6(7.8)

90

4800(2177)

12.18(3.7)

245

7800(3538)

  9.2(2.8)

300

10800(4899)

  6.9(2.1)

360

13800(6260)

  5.6(1.7)

400

16800(7620)

  4.6(1.4)

450

LINE PILL AND ROPE CAPACITY IN LAYER

Layer

Rated Line Pull

lbs(kgs)

Total Rope on Drum

ft(m)

1

16800(7620)

16(5)

2

14100(6396)

36(11)

3

12500(5670)

62(19)

4

 9900(4491)

85(26)
