4WD Winch

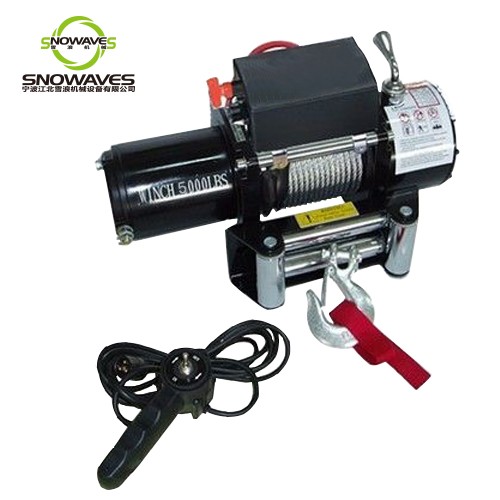

5000lbs Electric Winch
5000LB, WINCH SPECIFICATIONS
| Rated line pull | 5000lbs(2273kgs) single line |
| Motor | 1.9kw/2.6hp (12v) ; Series Wound |
| Gear reduction ratio | 235:1 |
| Gear train | 3 Stage Planetary |
| Cable (Dia x L) | Ø6.4mmx20m |
| Drum size (Dia x L) | Ø2.5''(64mm)x5.3''(133.5mm) |
| Braking action | Automatic In-The-Drum |
| Overall dimensions(L X W X H) | 16.3''x6.3''x8.5''(415x160x217mm) |
| Mounting bolt pattern | 165mm*114mm, Ø11 |
| Weight | N.W.31kg G.W.33kg |
| Packing size | 610 x 350 x 270mm 1PC/CTN |
| CBM | 0.058m3 |
Detail:
Pull ,speed, amperes, volts
|
Line pull lbs(kgs) |
Line speed ft/min(m/min) |
Current a |
|
0 |
9.8(3.0) |
30 |
|
1000(454) |
8.9(2.7) |
80 |
|
2000(907) |
7.5(2.3) |
120 |
|
3000(1361) |
6.2(1.9) |
160 |
|
4000(1814) |
4.9(1.5) |
210 |
|
5000(2268) |
3.9(1.2) |
260 |
Line pull and rope capacity in layer
|
Layer |
Rated line pull Lbs(kgs) |
Total rope on drum Ft(m) |
|
1 |
5000(2268) |
15(4.6) |
|
2 |
4200(1905) |
15.1(8) |
|
3 |
3700(1678) |
43(13) |
|
4 |
3200(1451) |
62(19) |
|
5 |
2890(1311) |
66(20) |
