4WD Winch

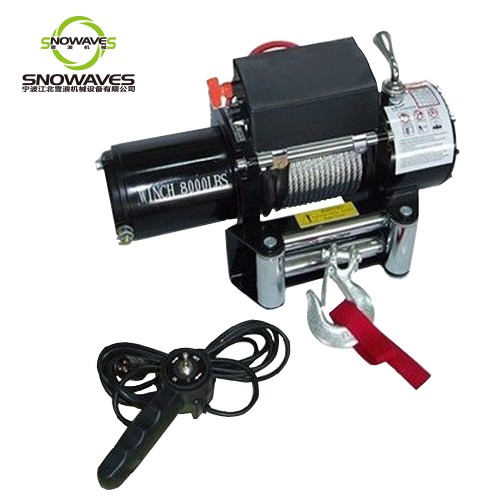

8000lbs Electric Winch
8000LB, WINCH SPECIFICATIONS
| Rated line pull | 8000lbs(3636kgs) single line |
| Motor | 3.0kw/4.1hp (12v); Series Wound |
| Control | Remote switch,12ft(3.7m) lead |
| Gear train | 3 Stage Planetary |
| Gear reduction ratio | 235:1 |
| Clutch | Sliding Ring Gear |
| Cable (Dia x L) | Ø8.1mm/28m |
| Braking action | Automatic In-The-Drum |
| Drum size (Dia x L) | Ø2.5''(64mm)x8.8''(233.5mm) |
| Battery | Recommended: 650CCA minimum for winching |
| Wireless Remote Control | Optional |
| Battery Leads | 2 gauge, 1.8m |
| Overall dimensions(L X W X H) | 19.8''x6.3''x8.5''(503x160x217mm) |
| Mounting bolt pattern | 255mm*114mm, Ø11 |
| Weight | N.W.33kg G.W.35kg |
| Packing size | 610 x 350 x 270mm 1PC/CTN |
| CBM | 0.058m3 |
Detail:
Pull, speed, amperes, volts
|
Line pull lbs(kgs) |
Line speed ft/min(m/min) |
Current a |
|
0 |
9.8(3.0) |
30 |
|
2000(907) |
7.5(2.3) |
120 |
|
4000(1814) |
4.9(1.5) |
210 |
|
6000(2722) |
3.9(1.2) |
250 |
|
8000(3629) |
2.9(0.9) |
270 |
Line pull and rope capacity in layer
|
Layer |
Rated line pull Lbs(kgs) |
Total rope on drum Ft(m) |
|
1 |
8000(3629) |
13(5) |
|
2 |
6540(2966) |
23(11) |
|
3 |
5550(2517) |
69(21) |
|
4 |
4800(2177) |
92(28) |
