4WD Winch

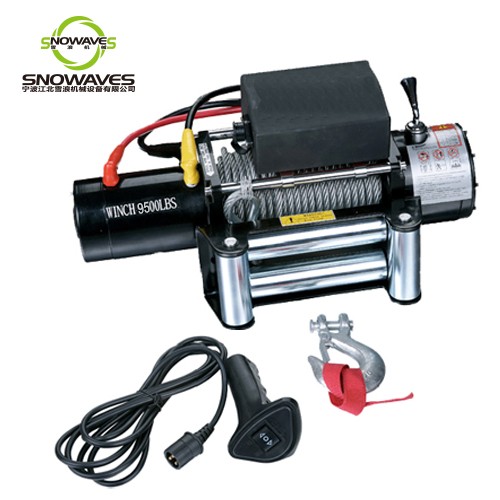

9500lbs Electric Winch
9500lbs Electric Winch
Products detail:

9500LB, WINCH SPECIFICATIONS

Rated Line Pull

9500LBS (4309kgs) single line

Motor

3.85kw/5.3hp, series wound

Control

Remote switch, 11.5ft(3.5m)lead

Gear train

3 Stage Planetary

Gear train ratio

203:1

Clutch

Sliding Ring Gear

Braking Action

Automatic In-The-Drum

Drum Size

Φ2.5"(64)mm×(8.8")233.5mm

Cable

Φ8.3mmX28m

Overall Dimensions

19.8"x6.3"x8.5"(529mm×160mm×217mm)

Mounting Bolt Pattern

255mm×114mm   Φ11

Weight

N.W.36kg    G.W.38Kg

Packing Size

610×350×270mm

PULL, SPEED, AMPERES, VOLTS

Line pull lbs(kgs)

Line speed ft/min(m/min)

Current A

0

 24.9(7.6)

70

1500(680)

 17.1(5.2)

160

3500(1588)

 11.5(3.5)

220

5500(2495)

  9.2(2.8)

260

7500(3402)

  7.9(2.4)

310

9500(4309)

  6.2(1.9)

380

LINE PULL AND ROPE CAPACITY IN LAYER

Layer

Rated Line Pull

lbs(kgs)

Total Rope on Drum

ft(m)

1

9500(4309)

13(5)

2

7640(3465)

23(11)

3

6500(2948)

69(21)

4

5420(2458)

92(28)
